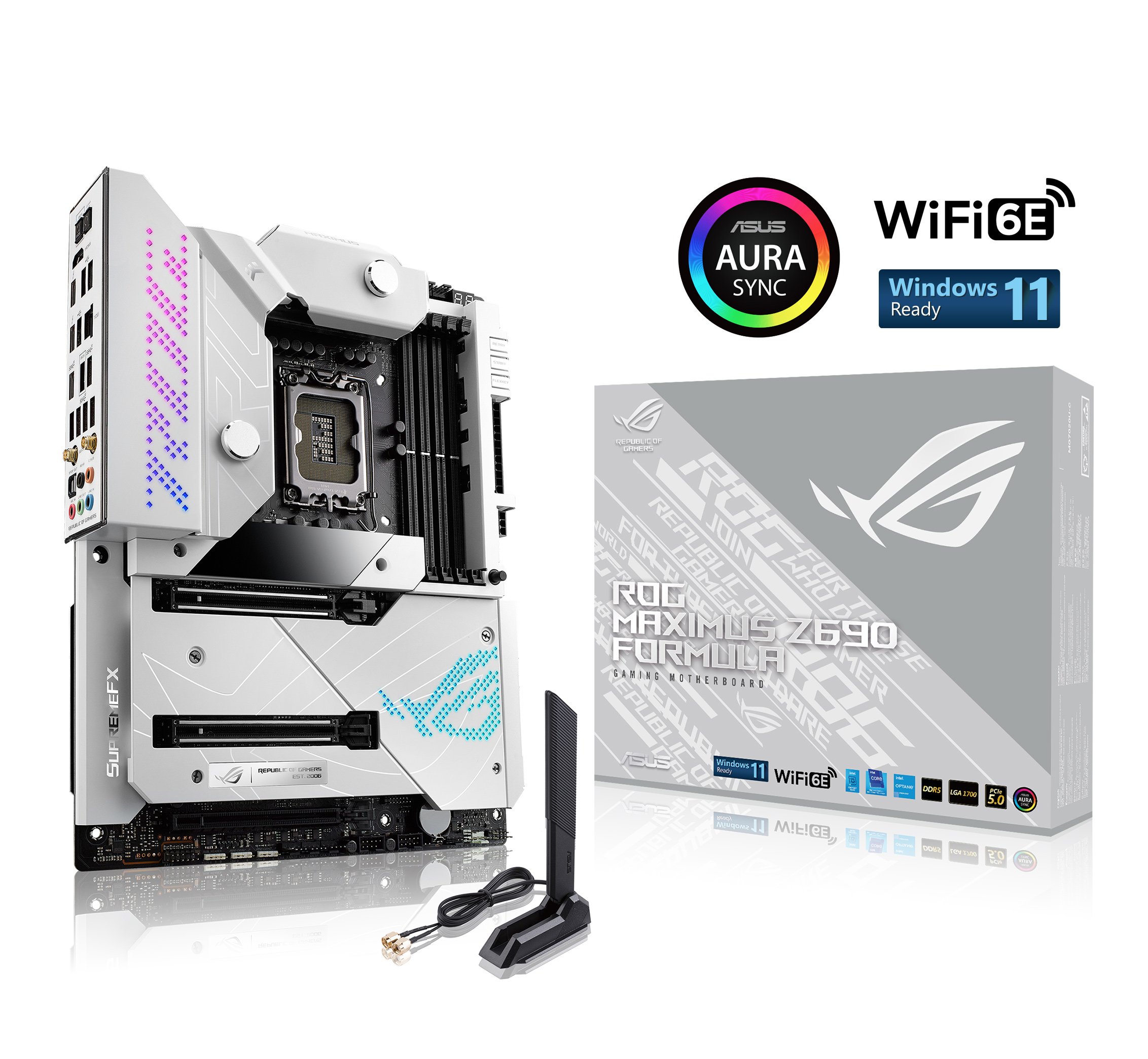

Socket LGA 1700 for 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors
Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration 
Robust Power Solution: 20+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Enlarged VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and two M.2 backplates, and ROG Water-Cooling Zone
High-Performance Networking: Onboard WiFi 6E, Marvell^® AQtion 10 Gb Ethernet, and ASUS LANGaurd
Fastest Connectivity: PCIe^® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector and dual Thunderbolt™ 4 USB Type-C^® ports
Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS^® ES9018Q2C DAC for pinpoint positioning and dynamics
Unmatched Personalization: 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, Q-Latch, BIOS  FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot, ROG Hyper M.2 card, and ROG graphics card holder
Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

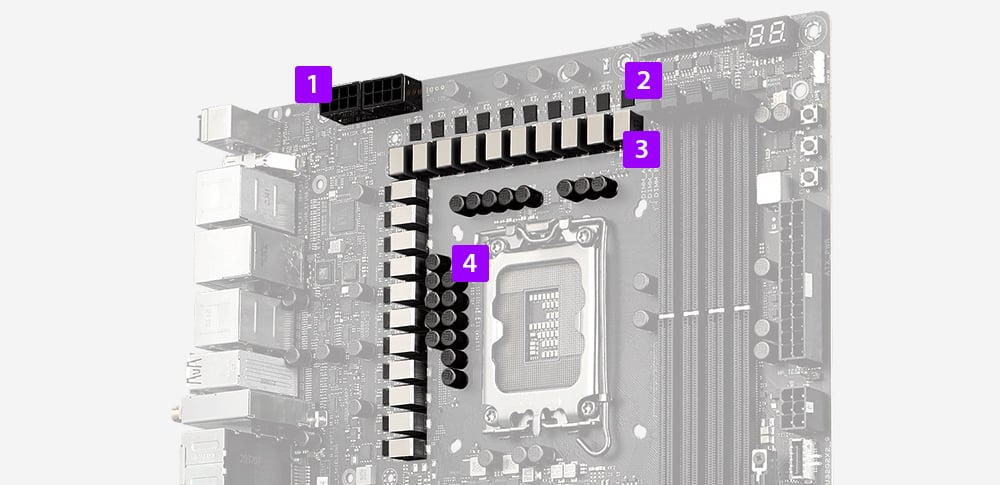

TEAMED POWER ARCHITECTURE

Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal.

8+8 pin ProCool II power connectors
Two ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
20+1 power stages
The VRM features 20+1 power stages, each rated to handle 105 amps.
MicroFine alloy chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
10K black metallic capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

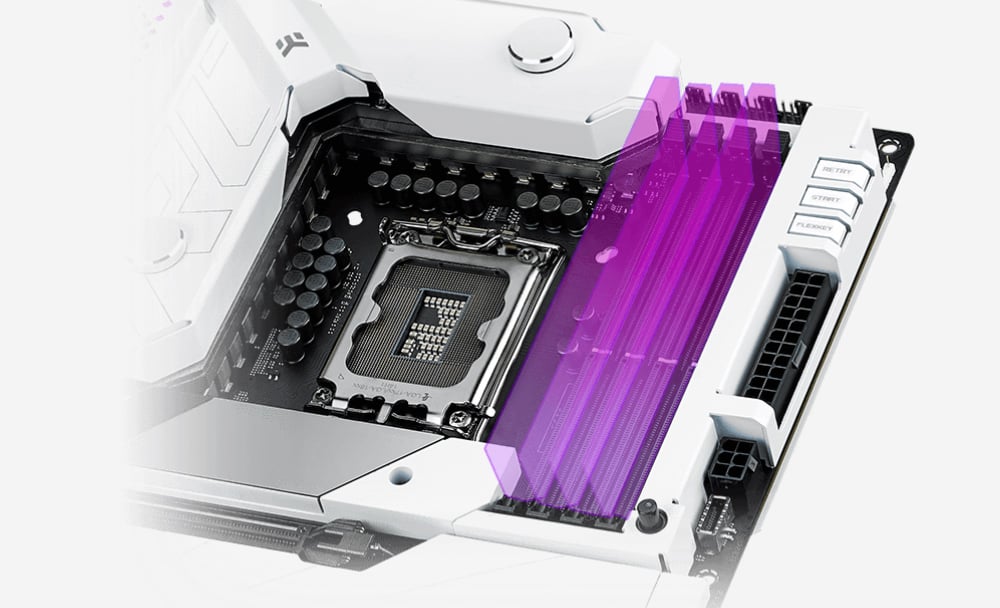

DDR5 WITH AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

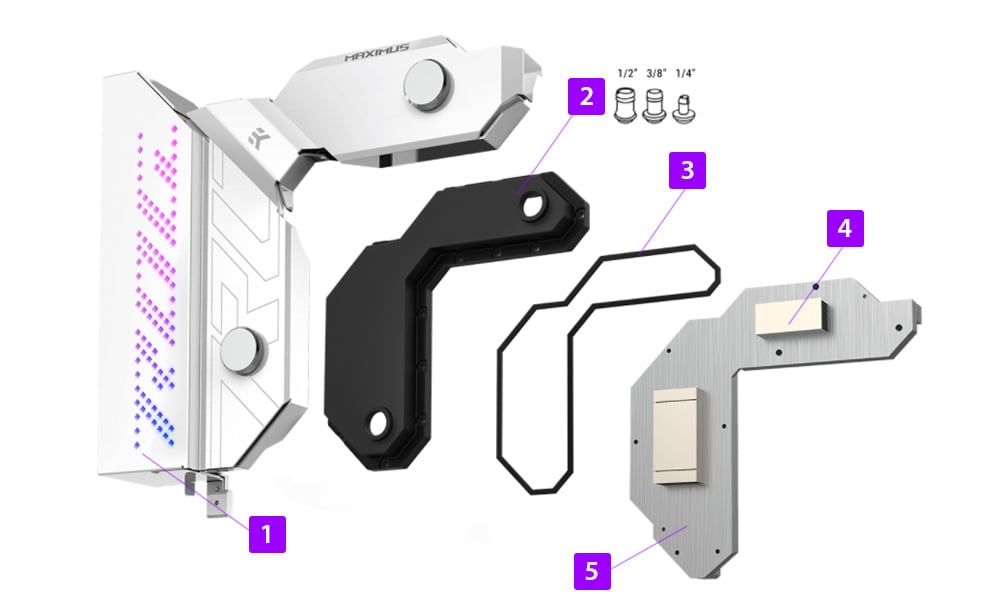

CROSSCHILL EK III

The CrossChill EK III water block leverages a fusion of passive and liquid cooling to keep VRMs operating at high efficiency. The nickel water channel hidden within the block quietly cools the Formula’s MOSFETs up to 63.7°C more than air alone, while the standard G1/4" threaded fittings are designed to integrate into existing setups with minimal effort.

Metal cover
G1/4" threaded design
Watertight rubber gasket
Nickel water channel
Large nickel surface area

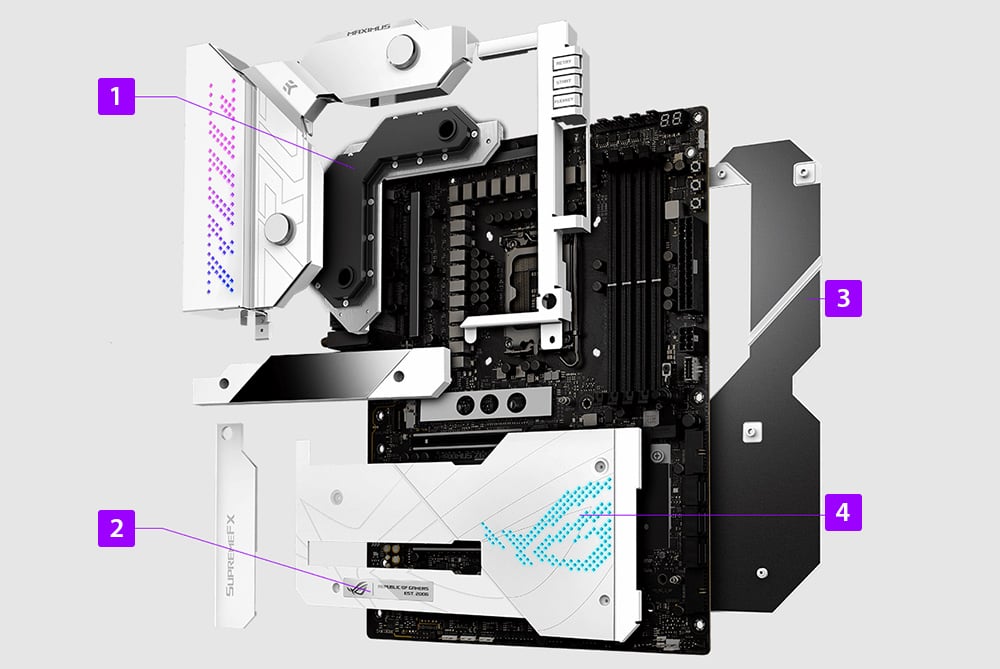

COOLER BY DESIGN

CrossChill hybrid thermal design
Engineered with a nickel cooling channel that's incredibly effective at removing heat.
M.2 heatsinks
Three dedicated heatsinks keep up to three M.2 drives in the optimum operating temperature range for consistent performance and reliability.
Solid steel backplate
An electro-galvanized, cold-rolled coil construction backplate resists bending and helps draw heat away from the VRM.
Chipset heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

NEXT GENERATION NETWORKING

WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
Marvell^® AQtion 10 Gbps Ethernet
Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before.

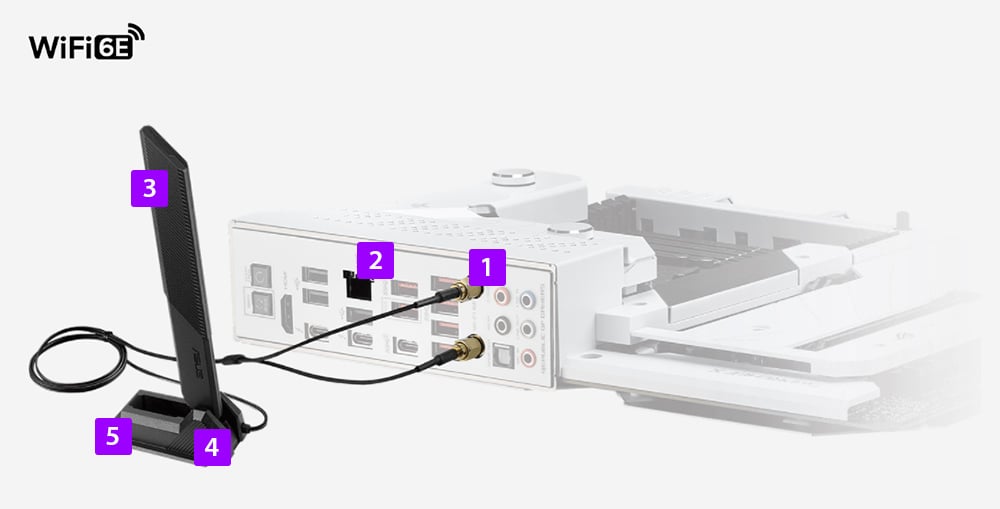

WiFi 6E antenna
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.
Adjustable Design
Four-way positioning enables better signal reception.
Magnetic Base
A powerful magnetic base secures the antenna on the top or side of the PC case.

*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. To learn more about the ASUS WiFi 6 ecosystem, please visit: asus.com/content/WiFi6/#WIFI-6E

USB Ports

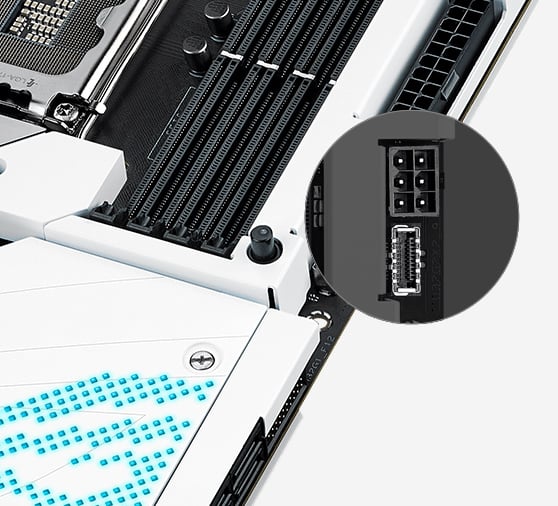

USB 3.2 GEN 2X2 TYPE-C^® FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+

USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

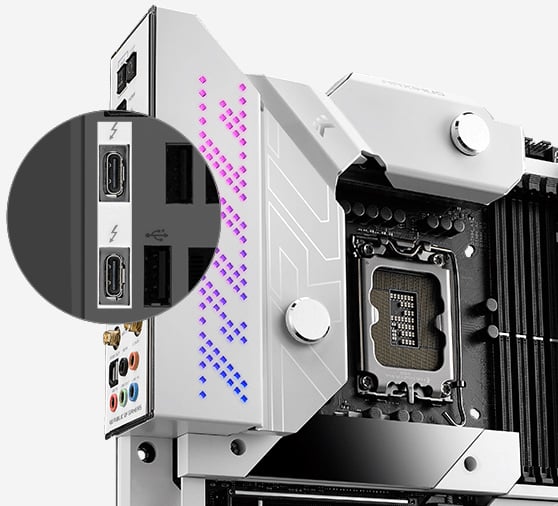

TWO ONBOARD THUNDERBOLT 4 USB TYPE-C^® PORTS

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.

STORAGE

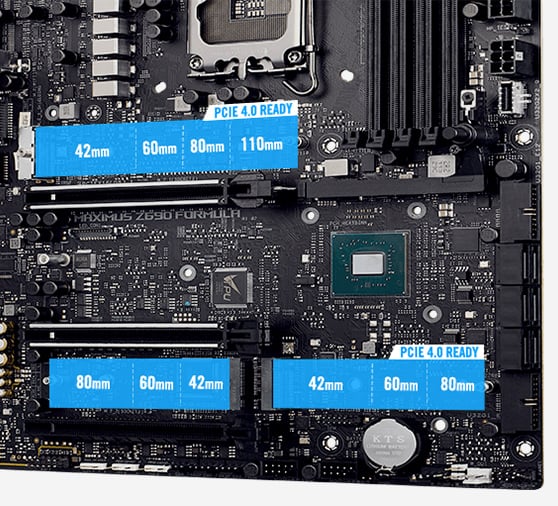

THREE ONBOARD M.2 SLOTS

ROG Maximus Z690 Formula features three onboard M.2 slots, with two offering support for PCIe 4.0 SSDs.

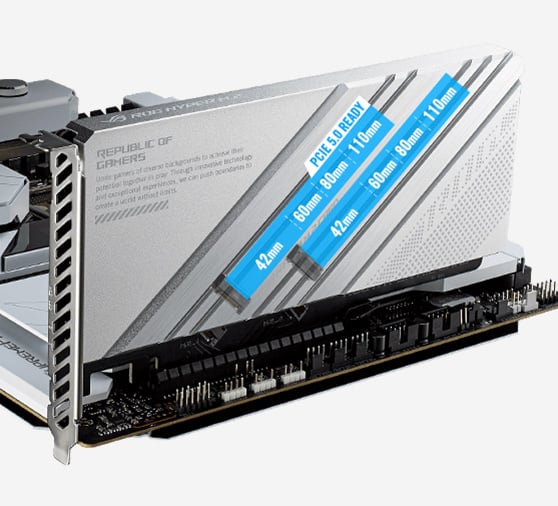

ROG HYPER M.2 CARD PCIE 5.0 READY

If users need more M.2 storage or even faster data transfers, the bundled ROG Hyper M.2 Card features two more slots, one of which is a PCIe 5.0 and ready to perform at up to twice the speed of the accompanying PCIe 4.0 slot.

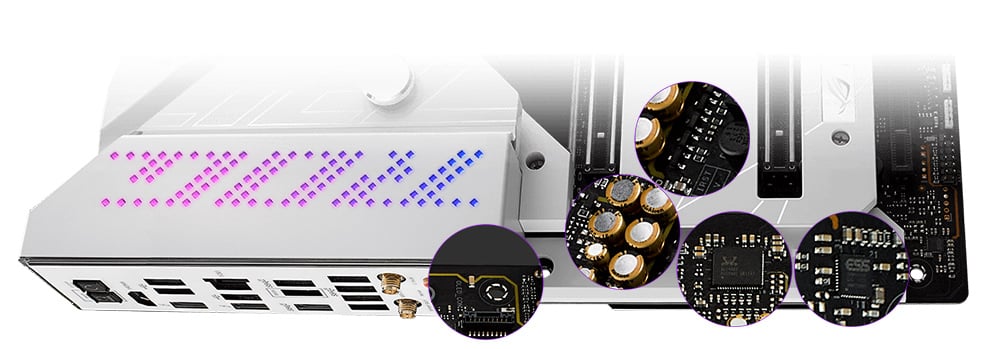

SUPREMEFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for clean power delivery to the SupremeFX ALC4082 codec, and an ESS^® 9018Q2C integrated DAC.

>Learn more about ROG audio technology

Audio Line Shielding
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
ESS^® SABRE9018Q2C
The ESS^® SABRE 9018Q2C integrated DAC amplifier is capable of providing -115 dB total harmonic distortion (THD+N) for playback that conveys all the subtlety and nuances of the audio track. In addition, the 121 dB dynamic range (DNR) provides an extremely low noise-floor, further accentuating dynamics and punch.
ALC 4082 codec
The ALC4082 codec uses USB instead of the conventional high-definition audio (HDA) interface and improves playback audio resolution from 192 to 384 kHz.
Switching MOSFETS
A unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
Premium capacitors
High-quality integrated components help produce warm, natural-sounding audio with exceptional clarity.

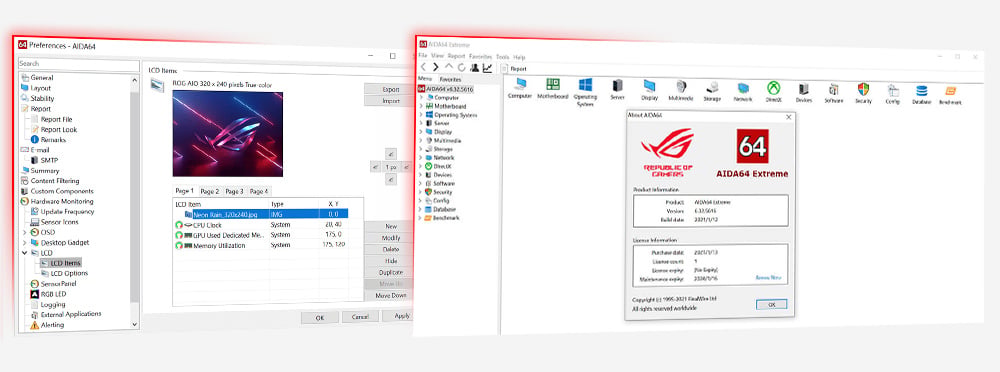

AIDA64 EXTREME

The ROG Maximus Z690 Formula includes a one-year AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be viewed on the desktop, sent to dedicated displays, or the OLED panels of ROG AIO liquid coolers*.

*Support available for ROG Ryujin II and later models.

Learn More About AIDA64 >

AURA SYNC

Gear up with ROG components — from graphics card and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so you’ll enjoy greater choice as your system expands.

Static
Breathing
Strobing
Rainbow
Color cycle
Starry night
Music effect
Smart
Adaptive color
Dark
