Socket LGA 1700 for 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors
Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Cold forged heatsink, enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, penta M.2 heatsinks and dual with embedded backplates and ROG Water-Cooling Zone
High-Performance Networking: Onboard Wi-Fi 6E, Marvell^® AQtion 10Gb, Intel^® 2.5Gb Ethernet, and ASUS LANGuard
Fastest Gaming Connectivity: PCIe^® 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt™ 4 support, rear triple USB Type-C^® ports
Industry-Leading Audio: ROG SupremeFX ALC4082 codec with ESS^® ES9018Q2C DAC for high-fidelity audio
Unmatched Personalization: AniMe Matrix™ LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
DIY-Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Clavis and ROG graphics card holder
Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

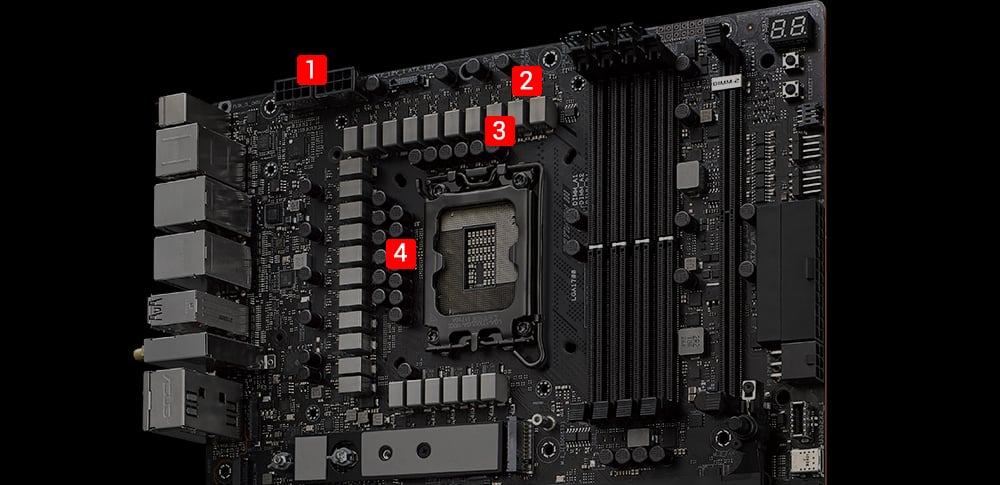

High quality components

Dual 8+8-pin ProCool II power connectors
Two ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
24+1 power stages
The VRM features 24+1 power stages, each rated to handle 105 amps.
MicroFine alloy chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
Premium metallic capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

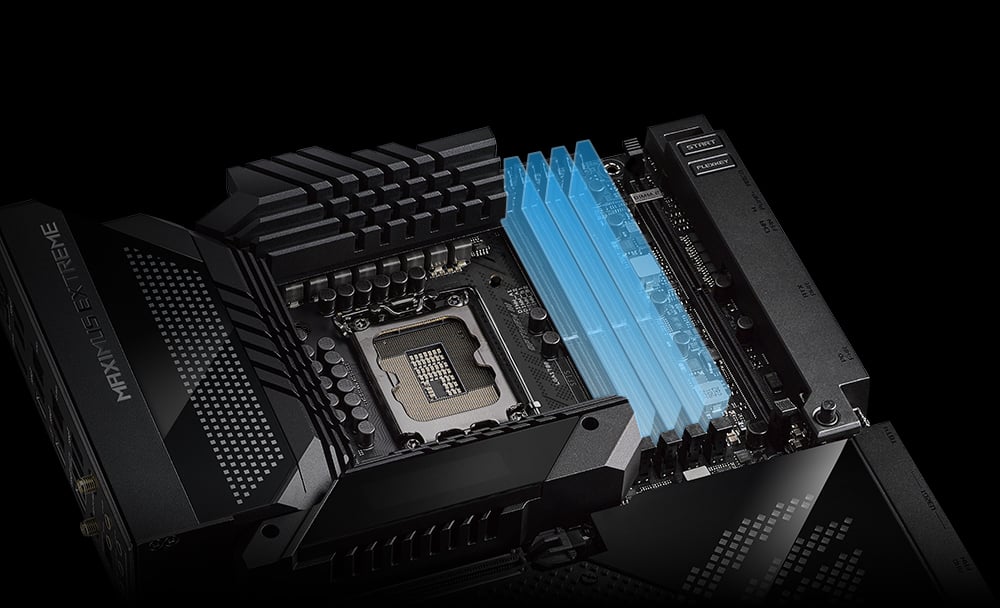

DDR5 WITH AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

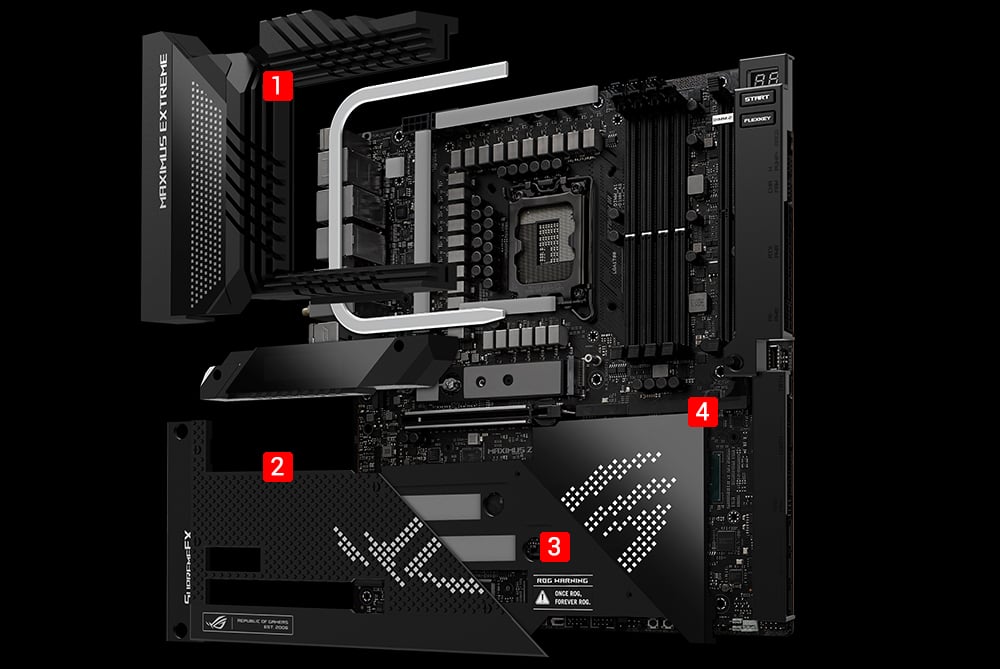

COOLER BY DESIGN

VRM and aluminum I/O heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
Cold-forged heatsink
The heatsink cover is crafted from pure aluminum to efficiently cool the two onboard M.2 drives.
M.2 Backplates
M.2 slots feature back-plates blocks that ensure high-performance drives deliver peak performance even when airflow is restricted.
Chipset heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

THERMAL MANAGEMENT

ROG Maximus Z690 Extreme features the most comprehensive cooling options ever.

Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
4-pin PWM/DC fan headers and ASUS HYDRANODE
Every onboard header auto-detects any PWM or DC fan, with three chassis fan headers offering ASUS HYDRANODE support.
AIO pump
A dedicated PWM/DC header for self-contained water-cooling setups.

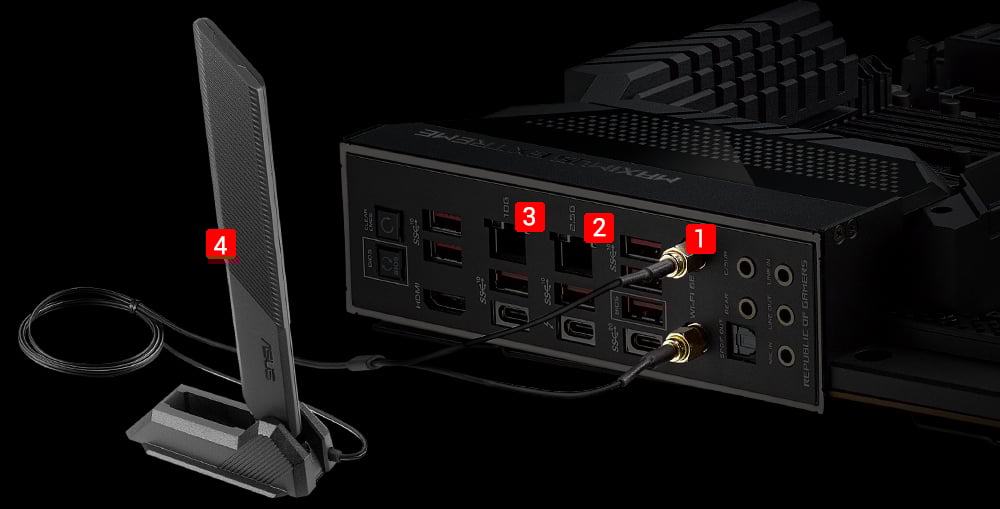

NEXT GENERATION NETWORKING

WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
Intel^® 2.5 Gb Ethernet
Onboard Intel^® 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, smooth lag-free gaming and high-res video streaming.
MARVELL^® AQTION 10 Gb Ethernet
Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before.
WiFi 6E antenna
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.

*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. To learn more about the ASUS WiFi 6 ecosystem, please visit: asus.com/content/WiFi6/#WIFI-6E

USB Ports

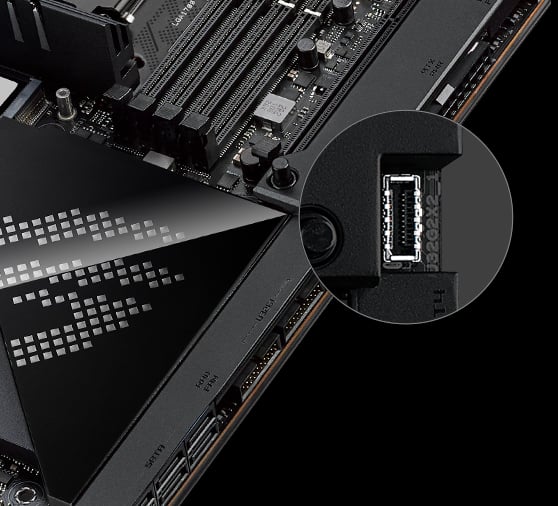

USB 3.2 GEN 2X2 TYPE-C^® FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+

USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

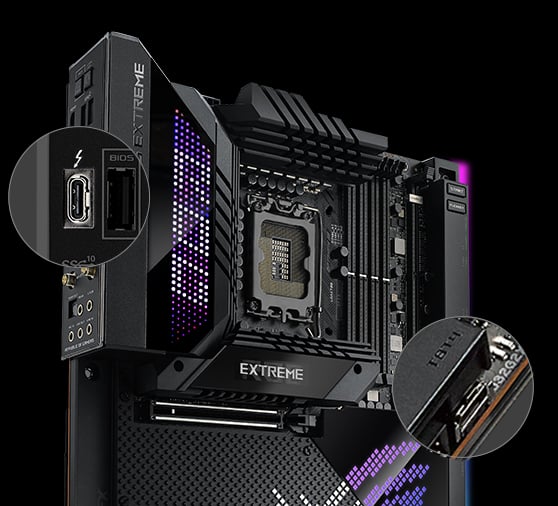

TWO ONBOARD THUNDERBOLT 4 USB TYPE-C^® PORTS

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.

STORAGE

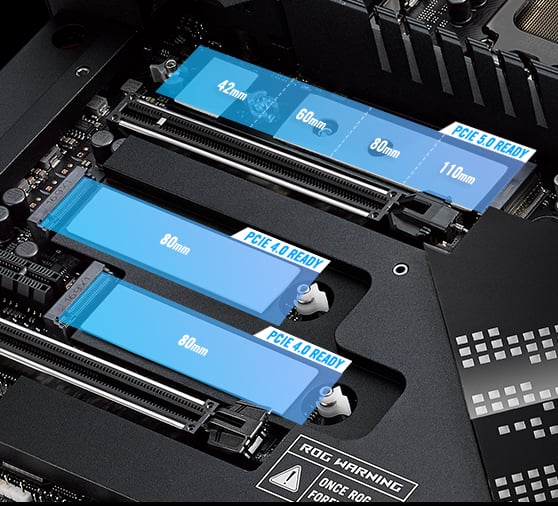

THREE ONBOARD M.2 SLOTS

ROG Maximus Z690 Extreme is features three onboard M2 slots, with one offering support for the latest PCIe 5.0 SSDs.

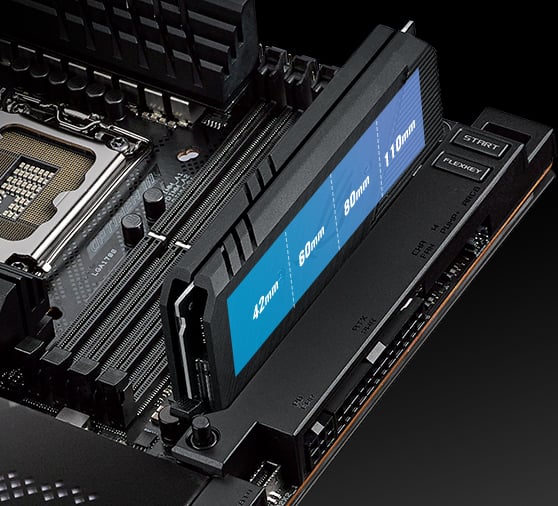

ROG DIMM.2

The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating aesthetics.

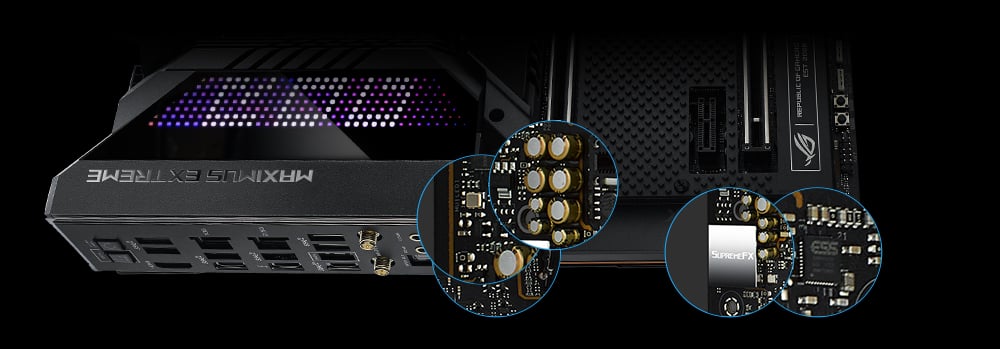

SUPREMEFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an ESS^® 9018Q2C integrated DAC capable of reaching -115dB THD+N to provide playback that conveys all the subtlety and nuances of the audio track.

>Learn more about ROG audio technology

Audio Line Shielding
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
ESS^® SABRE9018Q2C
The ESS^® SABRE9018Q2C integrated DAC amplifier is capable of providing -115 dB total harmonic distortion (THD+N) for playback that conveys all the subtlety and nuances of the audio track. In addition, the 121 dB dynamic range (DNR) provides an extremely low noise-floor, further accentuating dynamics and punch.
ALC 4082 codec
The ALC4082 codec uses a USB interface instead of the conventional high definition audio (HDA) interface and improves playback audio resolution from 192 to 384 kHz.
Switching MOSFETS
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs
Capacitors
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity

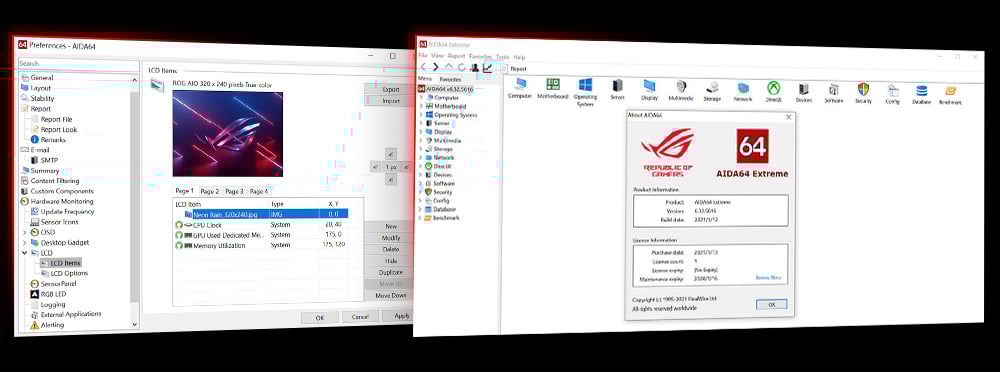

AIDA64 EXTREME

ROG Maximus Z690 series includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.

*Support available for ROG Ryujin II and later models.

Learn More About AIDA64 >

AURA SYNC

Gear up with ROG components — from graphics card and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so you’ll enjoy greater choice as your system expands.

Static
Breathing
Strobing
Rainbow
Color cycle
Starry night
Music effect
Smart
Adaptive color
Dark
